Volkswagen Tiguan 2008 - 2016 Workshop Manual. Wiring Diagrams

Volkswagen Tiguan 1 (5N1-5N2) 2008 - 2016 Service Repair and Maintenance Manual, color Wiring diagrams, Engine & Transmission Repairs, Error Codes table, fuse and relay diagram. Self-study programme. The procedure for changing the oil and filter, replacing the brake fluid and brake pads. The manual online can be downloaded in PDF format for free.

• Volkswagen Fuse & Relay Diagram>>
• Volkswagen Wiring Diagrams>>
• Volkswagen SSP, Self-study Program>>
• VW, Audi, Seat and Skoda Fault Codes list>>
• VAG Diagnostic Tools. VDS, EEPROM, ODIS, ELSAWin>>
• Home Page>>

VW Tiguan (5N1) 2008 - 2011
VW Tiguan (5N2) 2012 - 2016

Volkswagen Tiguan 2016-2022 AX1 AD1 BW2 BJ2 (MEX) Workshop Manual>>

Quick navigation through sections:

• Engines
• Cooling, heating and air conditioning system
• Injection systems, ignition
• Fuel system
• Front and rear suspension
• Brake system
• Steering
• Gearboxes, clutch
• Body
• electrical equipment
• General documentation

4-cylinder direct injection engine (1.4 l engine, 4V, EA 211, turbocharger) Download

4-cyl. injection engine (1.8 and 2.0 l engine, chain drive) Repair Manual Download

Volkswagen 2.0 Liter Chain-Driven TSI Engine Download

VW Tiguan Auxiliary heater, Workshop Manual Download

Fuel supply system VW Tiguan - petrol engines Repair Manual Download

Fuel supply system VW Tiguan - diesel engines Repair Manual Download

7-speed dual clutch gearbox 0BH, Workshop Manual Download

Audi, VW Jetta, VW Passat, VW Tiguan, VW Touran - 09G/09M Transmission Download

Tiguan Haldex All-Wheel Drive Download

VW Tiguan - General body repairs, interior Download

VW Tiguan - General body repairs, exterior Download

Volkswagen Tiguan 2015 Owner's Manual Download

TSI 1.4 l / 90 kW CAXA turbocharged engine Download

Device and principle of operation. A guide to the self-study program 405 VW/Audi. Engine code: CAXA.

The 1.4l TSI engine (122 hp) is designed to replace the 1.6l FSI engine (115 hp). Compared to its predecessor, the new TSI engine delivers significantly better performance with significantly lower fuel consumption and CO2 emissions. What distinguishes it from the twin TSI engines is the absence of a compressor and the new charge air cooling system.

Contents: Technical features, Specifications, Intake system, Cylinder head, Single supercharging with exhaust gas turbocharger, Cooling systems, Charge air cooling, Volume flow dependent fuel system, Bosch Motronic MED 17.5.20 engine management system overview, Sensors, Actuators elements, functional diagram

Wiring diagrams VW Tiguan from 2007 release Download

• 2.0L engine  CAWA
• 2.0L engine CAWB
• 2.0L engine CCTA
• 6-Speed Automatic Transmission 09M

Fuses and relay VW Tiguan 5N 2008 - 2016 Download

Volkswagen Tiguan (model: 5N1) 2008 - 2011

Volkswagen Tiguan (model: 5N2) 2012 - 2016

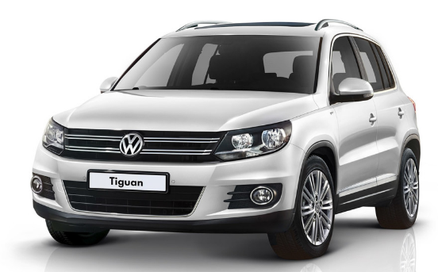

The restyled Tiguan I was produced from 2011 to 2016. It is distinguished from its older brother by a more stylish look, an improved interior, an expanded range of engines and gearboxes. At one time, it was a bestseller in the new car market, and today it is one of the most sought after in the secondary market.

Today, for a restyled Tiguan I, they ask for an average of 814 thousand rubles. Those who are going to take a car need to know what sores occur in the main components of the crossover and what needs to be done to fix the problems.

Problem 1. Engines

Gasoline engines 1.4 TSI (150 hp) of the EA111 family and 2.0 TSI (180 hp) of the EA888 family suffer from oil consumption - 1-1.5 l / 1000 km. Part of the oily liquid burns out during operation, some can leave through gaskets and seals.

To solve the problem, it is recommended to fill in high-quality oil, monitor its level and change it every 7-8 thousand km. We also recommend checking the condition of the oil separator, its membrane and crankcase ventilation valve.

If the problem is more serious and an overhaul is needed, in the case of a two-liter engine, experts recommend installing a piston group from the first generation engine family (GEN 1).

Problem 2. Timing chain

There is no clear regulation for replacing the timing drive. For a 1.4 engine, the chain resource is on average 80-100 thousand km, on a 2.0 engine it is even more, but it can stretch and require replacement much earlier. Therefore, after 50 thousand kilometers, it is better to closely monitor the condition of the chain.

On a two-liter engine there is a special hole that allows you to understand what condition the tensioner is in. Getting to it is relatively simple: remove the right front wheel, fender liner, plastic pipe and plug. And, of course, in order to extend the resource, it is recommended to change the oil as often as possible and refuel with high-quality fuel.

Problem 3. DSG

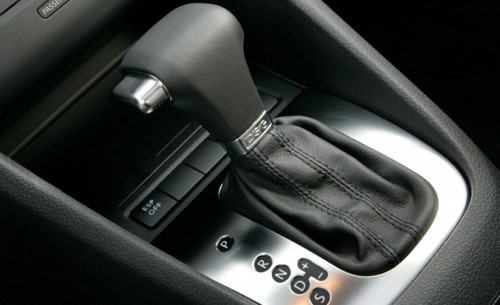

In the restyled version, the Tiguan began to install a “robot” in two versions - six- or seven-speed. In all cases, these are boxes with "wet" clutches. The six-speed DQ250 came with a 1.4 petrol engine (150 hp), the seven-speed DQ500 relied on the most powerful version 2.0 (210-211 hp).

In general, these units are considered reliable, but before buying, you still need to check the condition of the clutches and mechatronics. You can do this by connecting diagnostic equipment, or on your own during a test drive. A serviceable unit should not have any jerks and “thoughtfulness” when switching.

If everything is in order, it remains only to change the oil in the box as often as possible (20 thousand km), and also to avoid overheating and frequent sharp accelerations. Another way to avoid the problems of the "robot" is to choose the option with a classic machine, most of these options are on sale.

Problem 4. Electrical

Often, wiring is oxidized in different places at the crossover. Most likely, the main reason will be in the wires between the body and the motor, which are not wrapped with electrical tape. Vibrations and friction can cause problems over time.

Failures happen with the electronics control unit. Often this happens at the moment of transition from positive temperature to negative. At the same time, the on-board computer can show that the dipped beam lamps, turn signals, brake lights are not on.

When buying, the first thing to check is the fuses. Perhaps the block itself has already been changed under warranty (the upgraded version has been installed since 2012).

Problem 5. Cooling

Malfunctions occur mainly in the warm season and in traffic jams. Errors in the control unit are associated with the operation of a large radiator fan. With a replacement, it is better not to pull so that there is no risk of overheating the engine.

In the original, both fans are replaced as an assembly with the control unit, but there are options with a separate replacement. It is also recommended to flush the radiators once a year or at least twice.

The water pump is not reliable on all types of engines. Usually it fails at 60-120 thousand km, but sometimes it does not even reach 50 thousand km.

At the slightest symptom, such as an antifreeze leak with a replacement, you should not delay it. The consequences of overheating can be especially critical for these engines.
